Twotrees TS5-7W Laser Engraver
Shipping calculated at checkout.

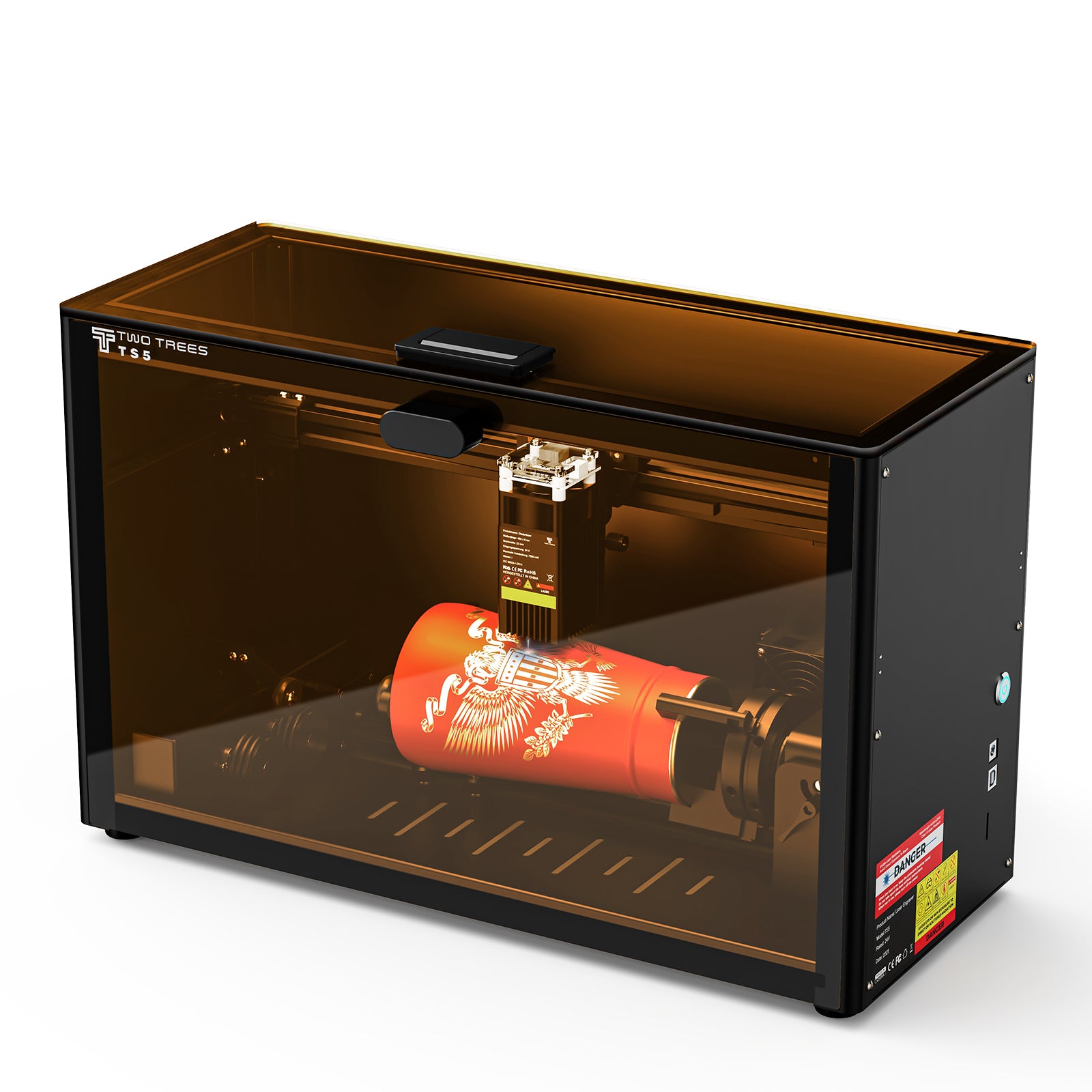

Twotrees TS5 Laser Engraver

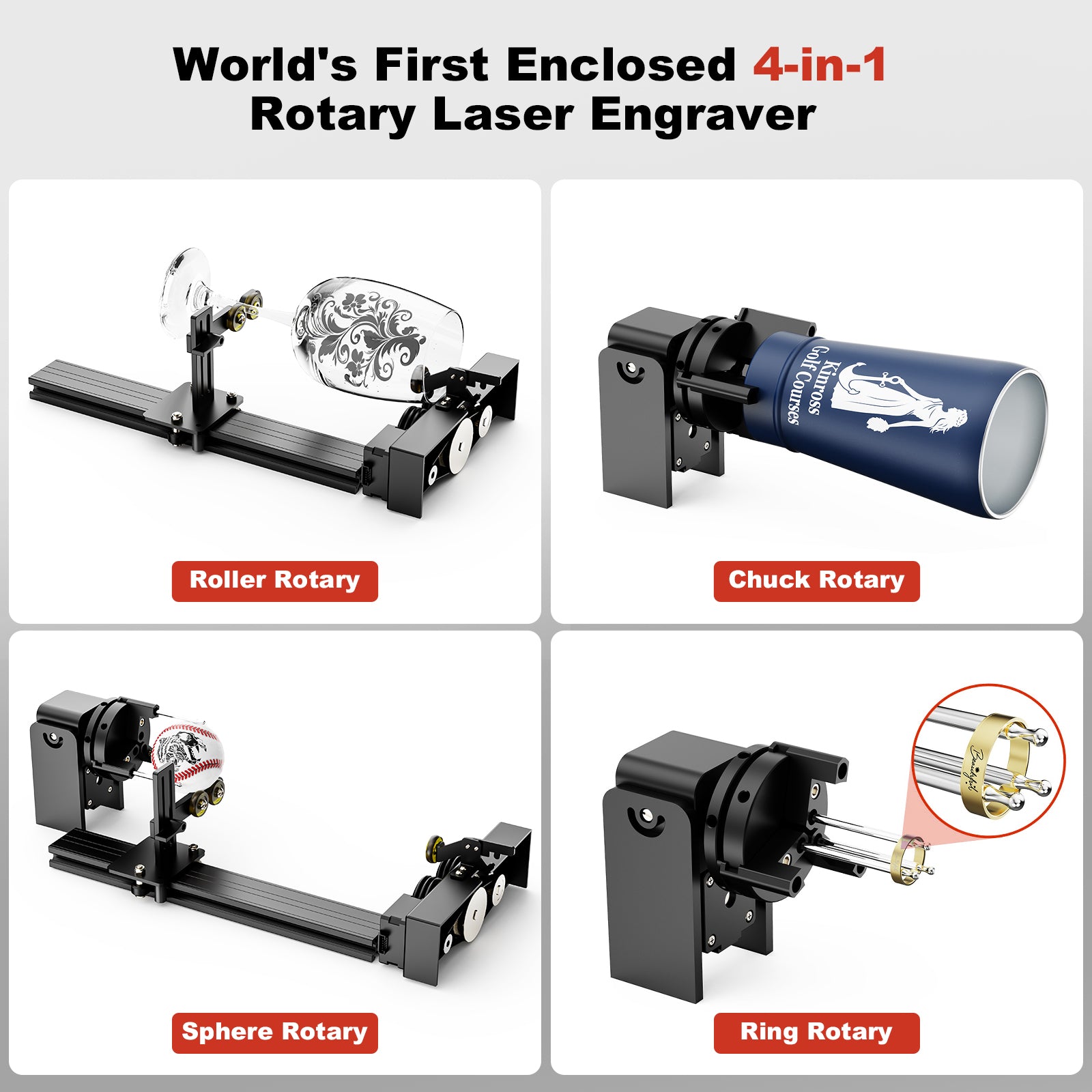

World's First Enclosed 4-in-1 Rotary Laser Engraver

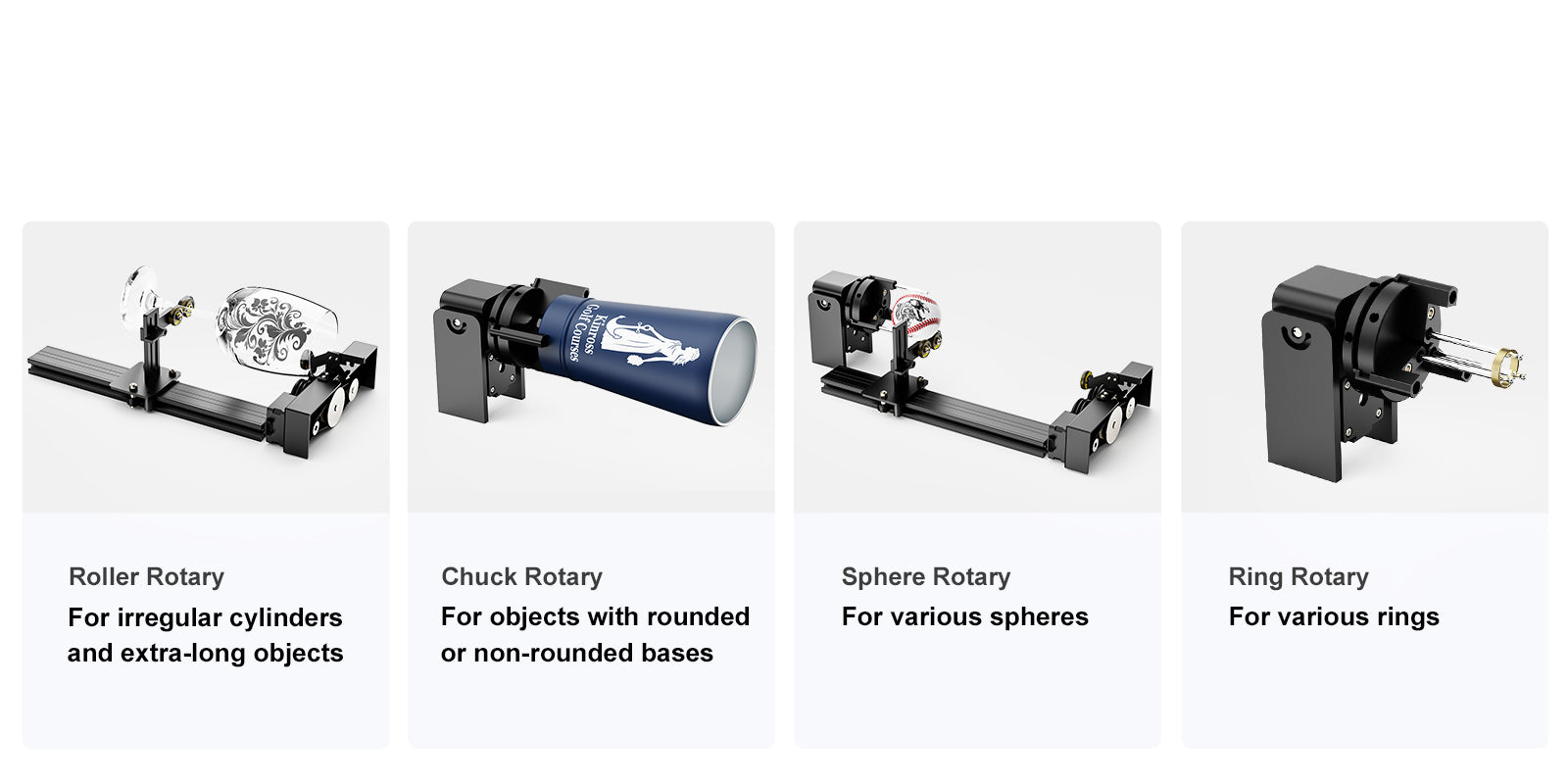

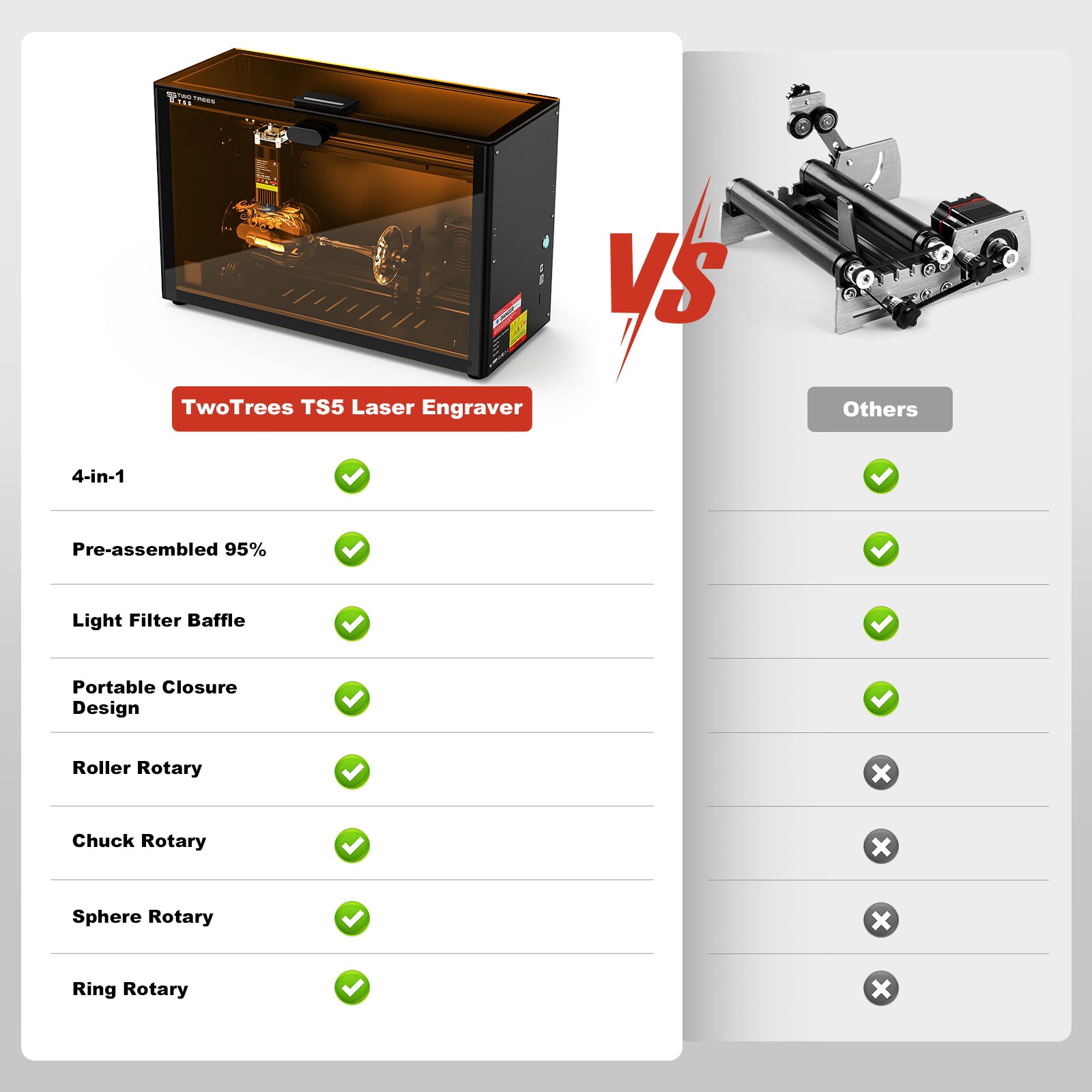

4-in-1 Rotary

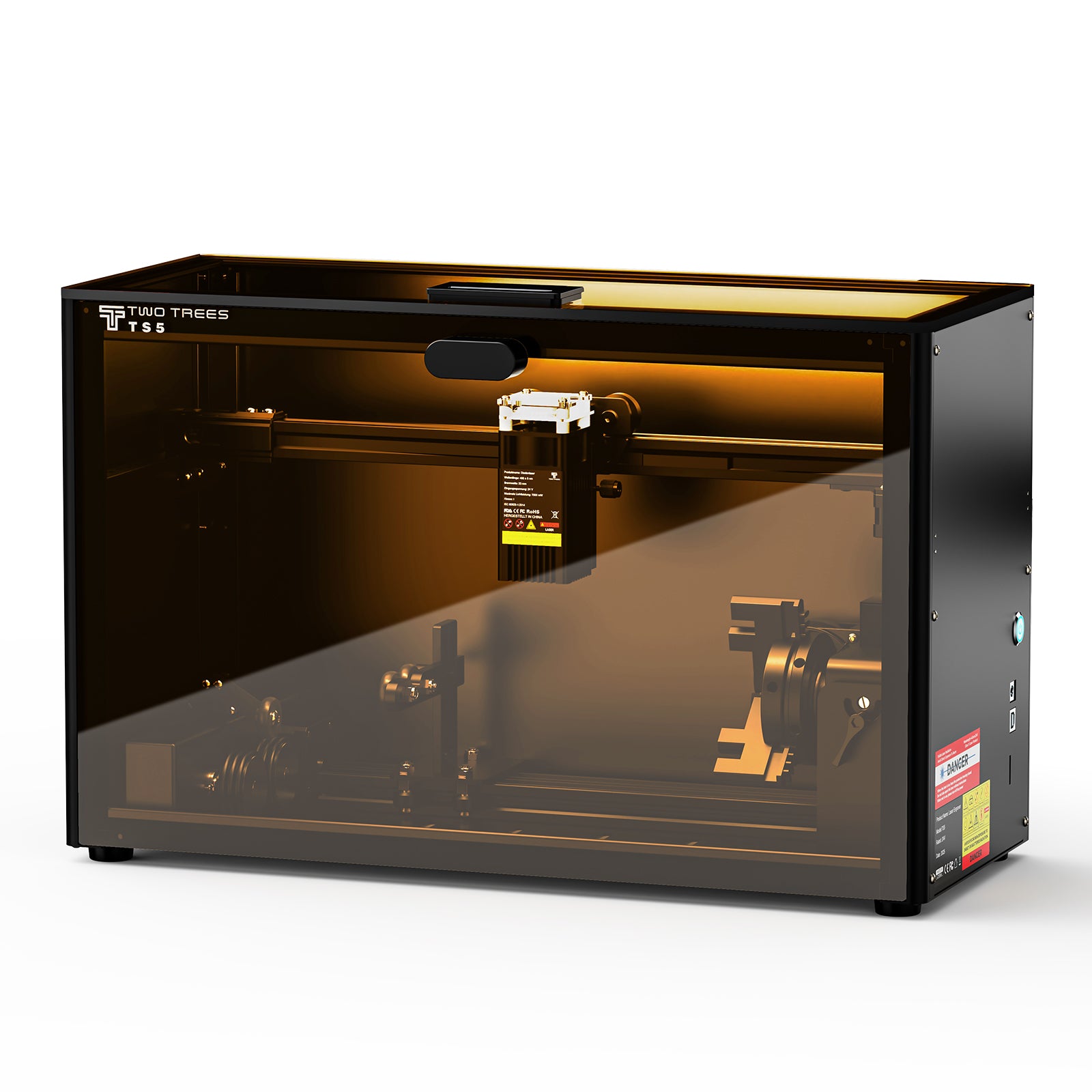

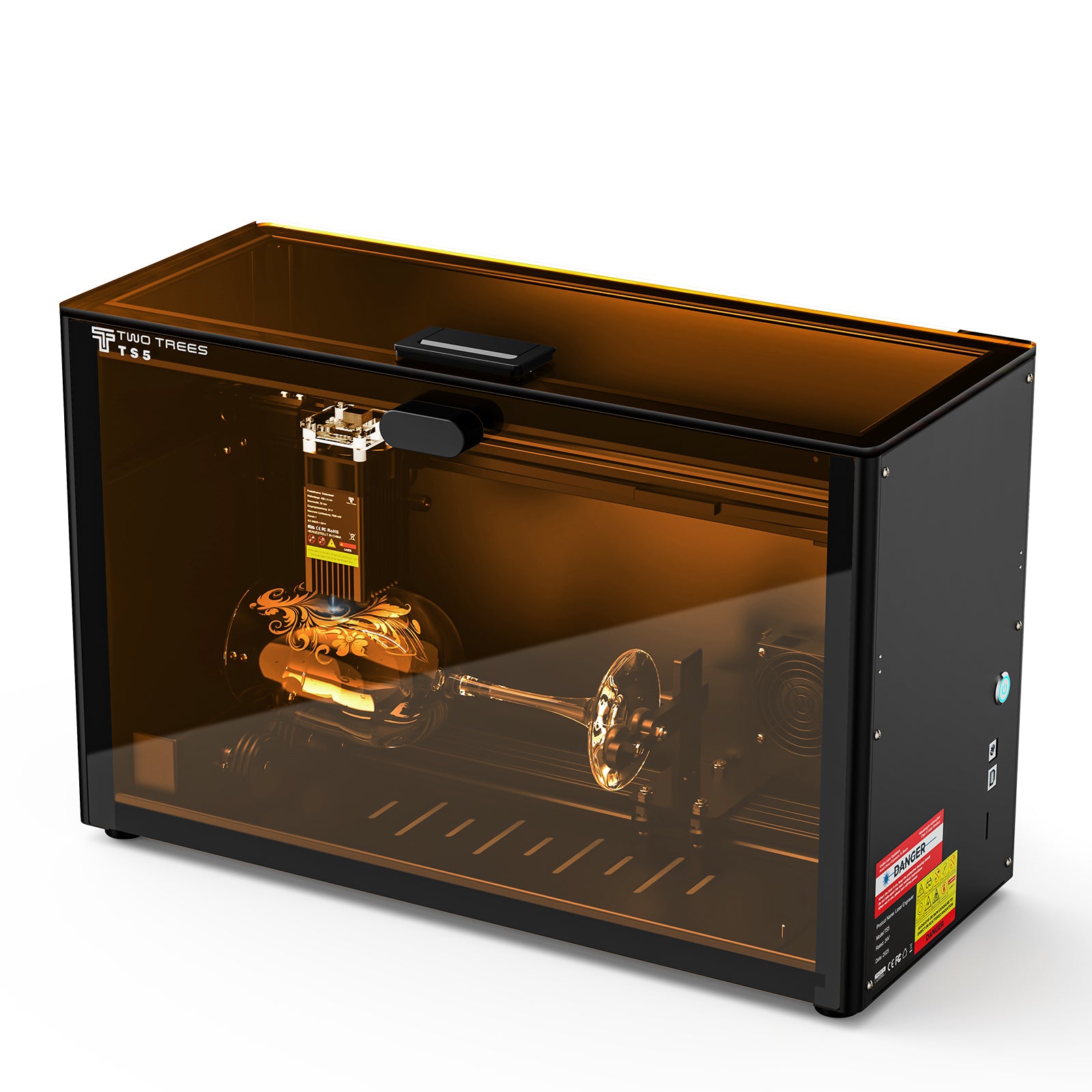

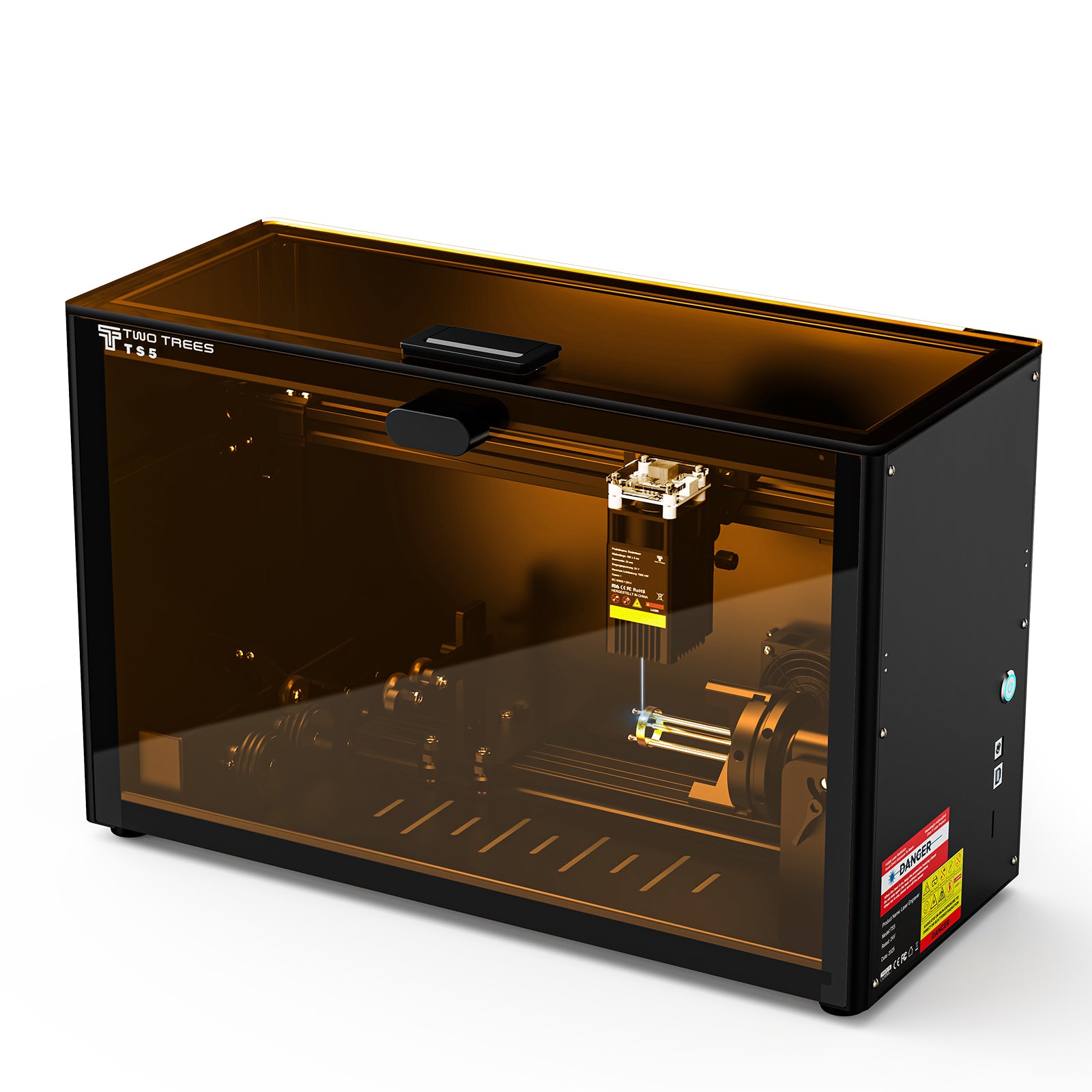

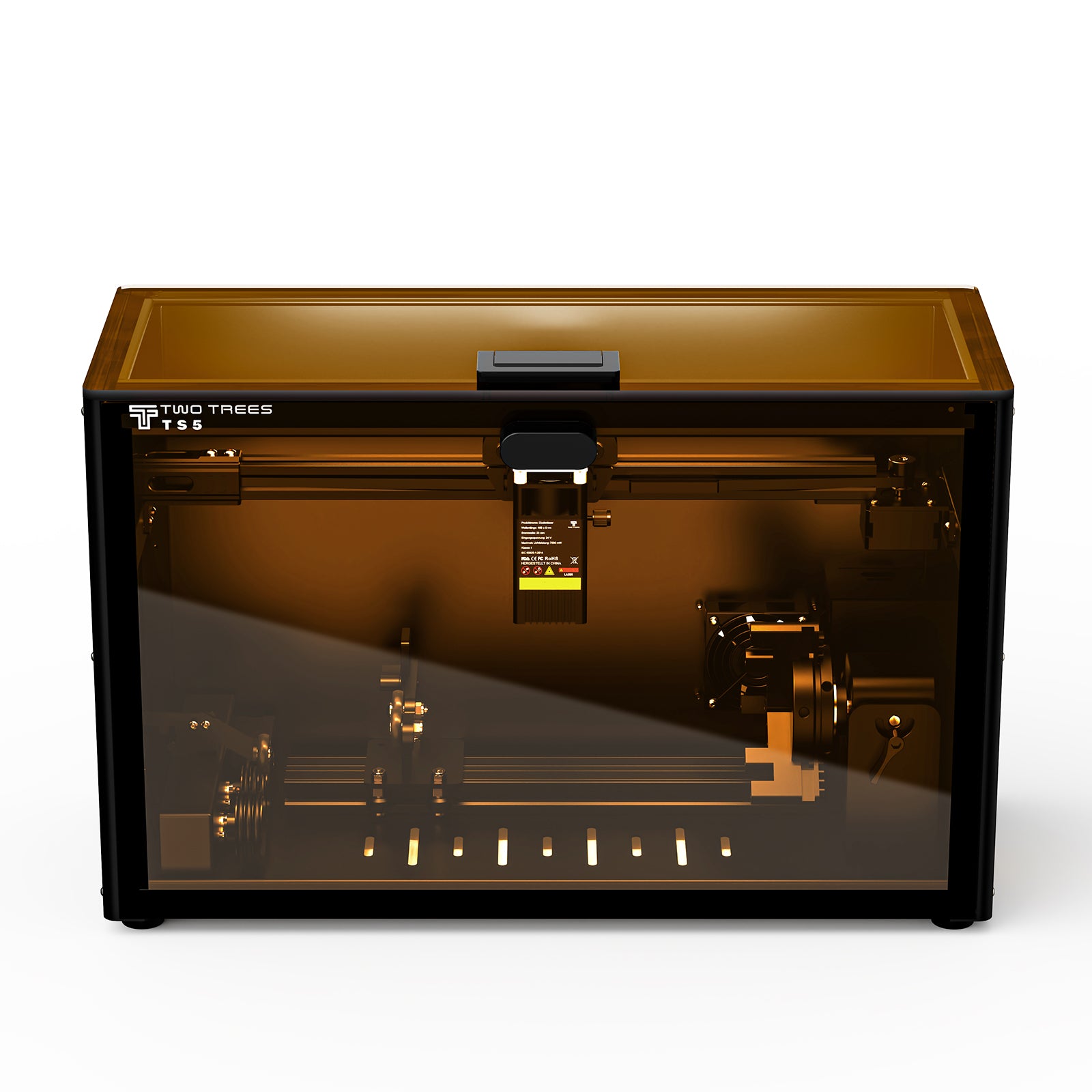

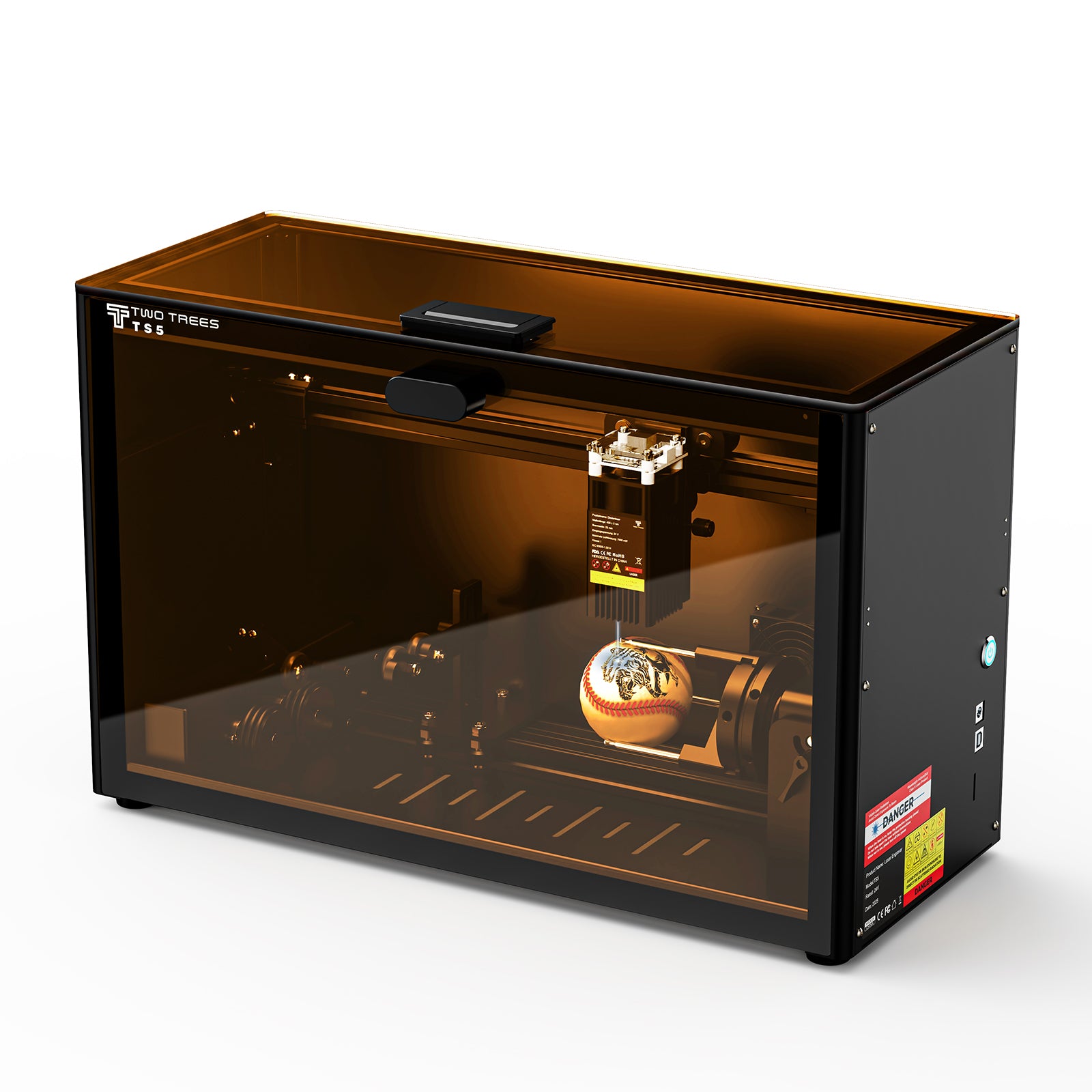

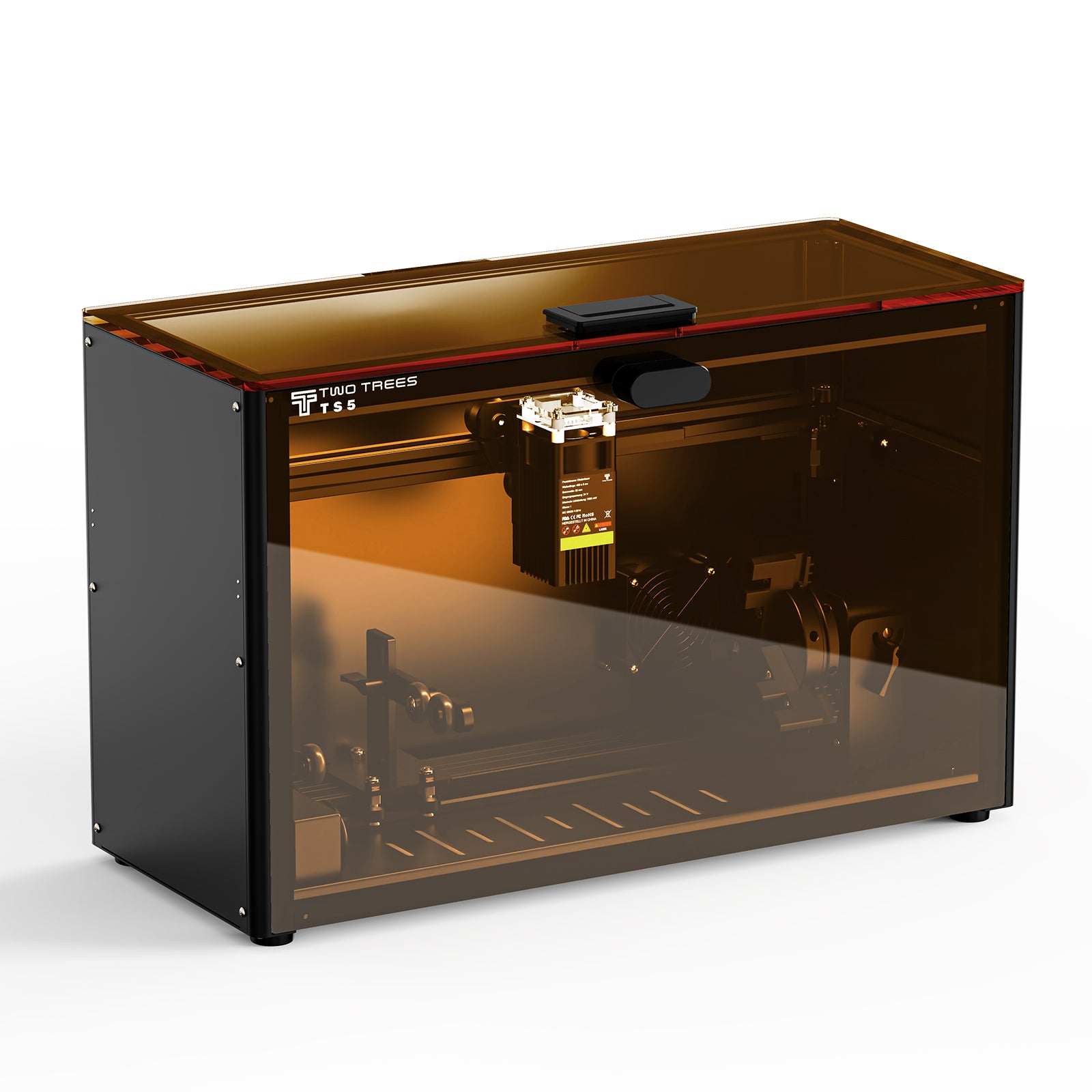

Enclosed One-piece Design
Ring Rotary
For various rings

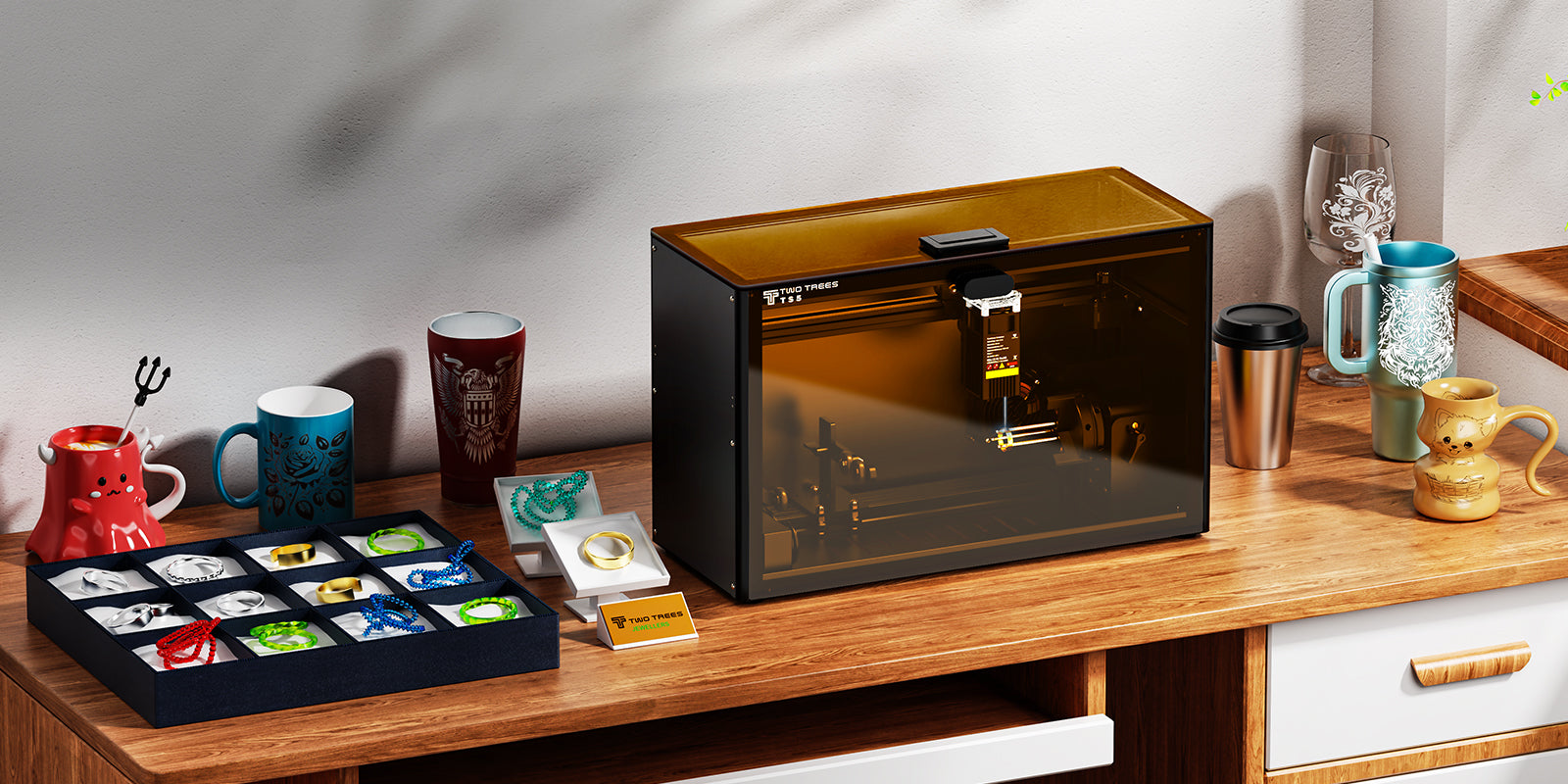

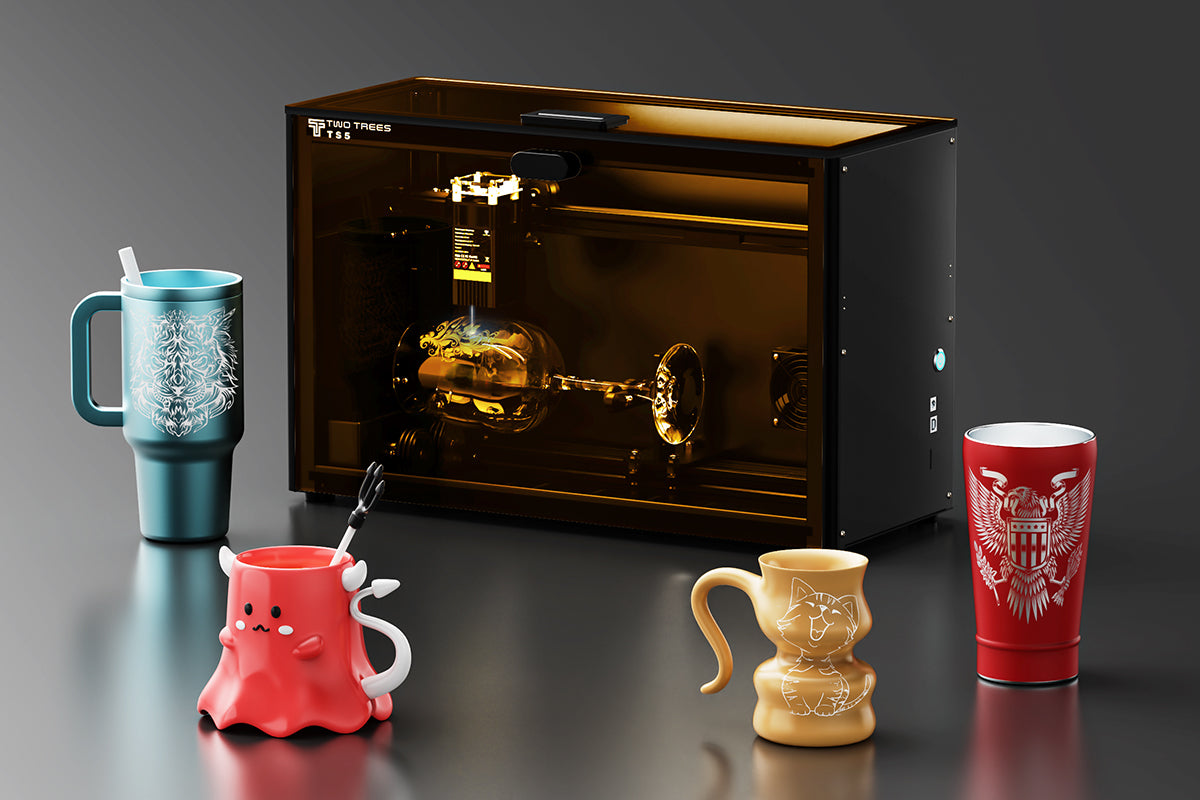

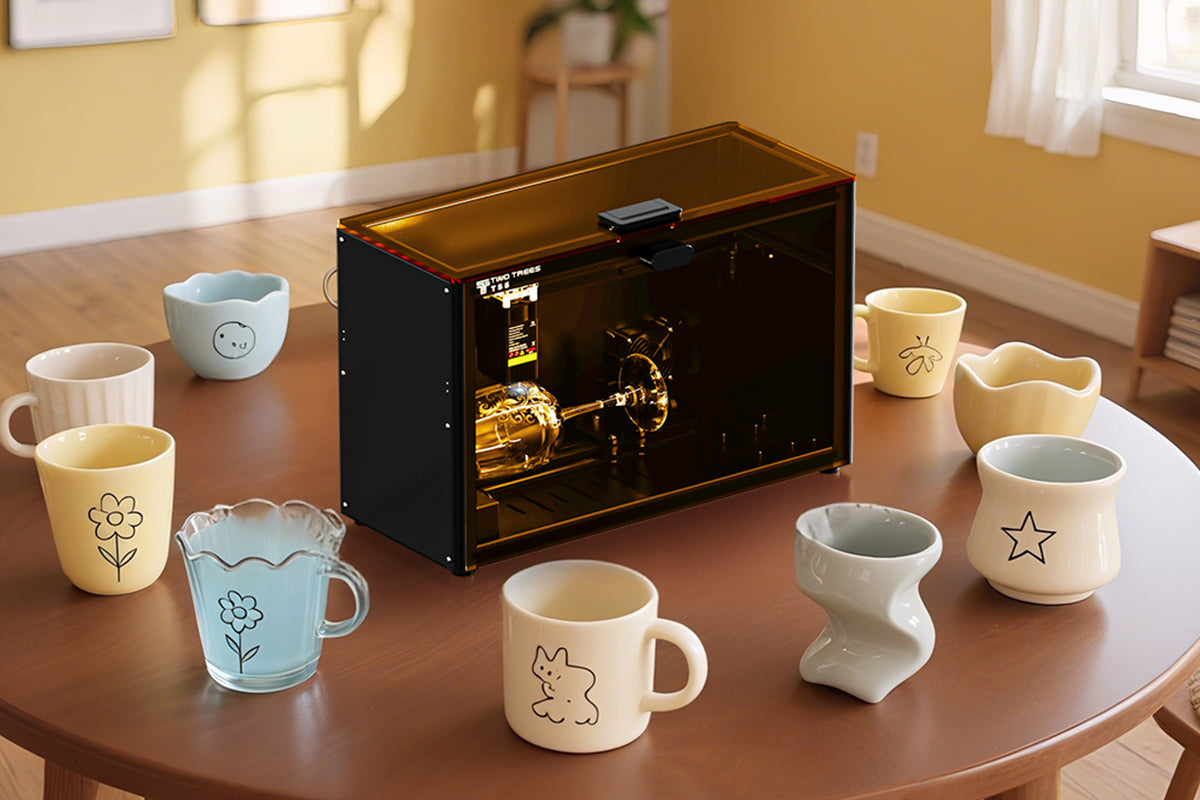

More Practical Projects
From ldea to Mass Production

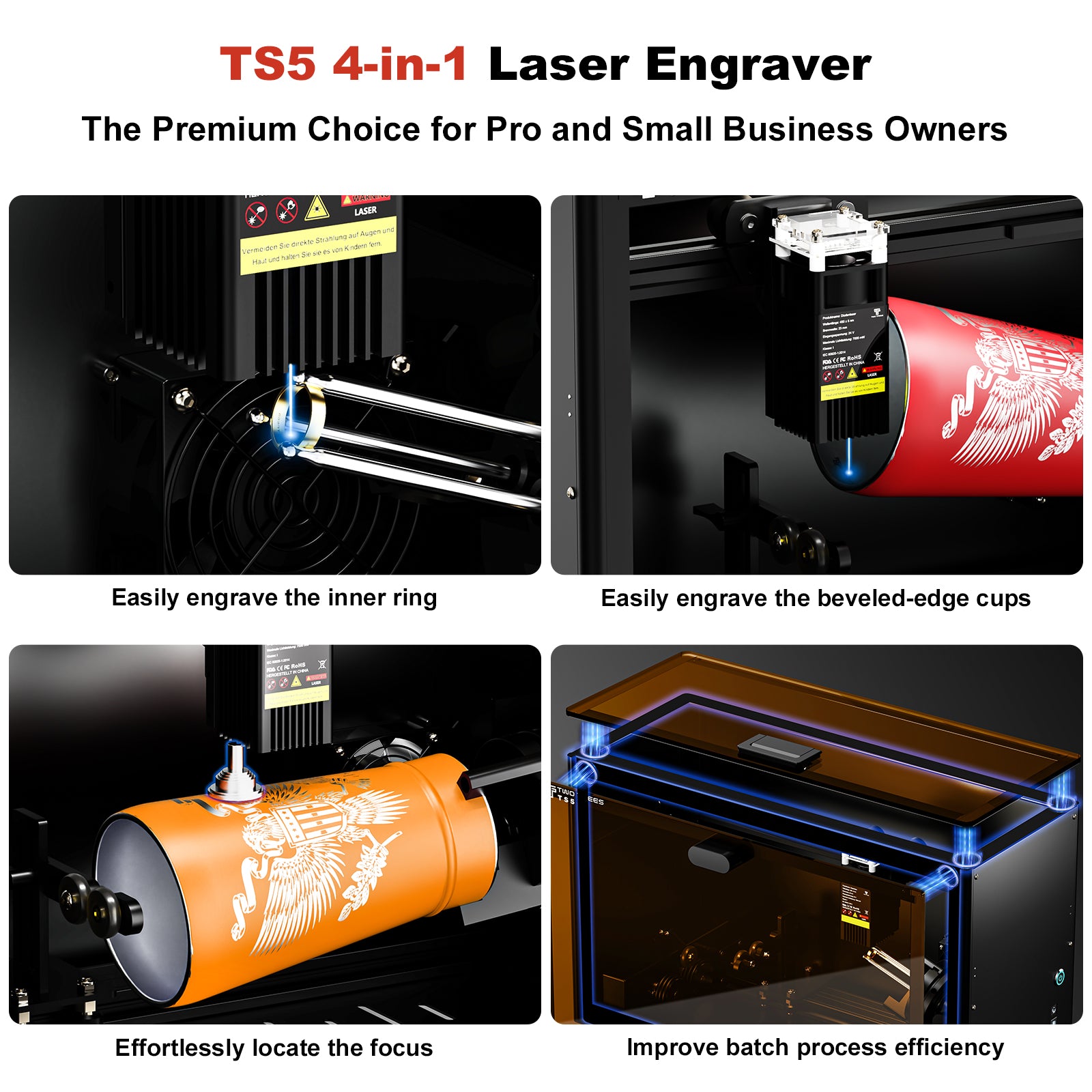

Features That Makes TS5 Stand Out

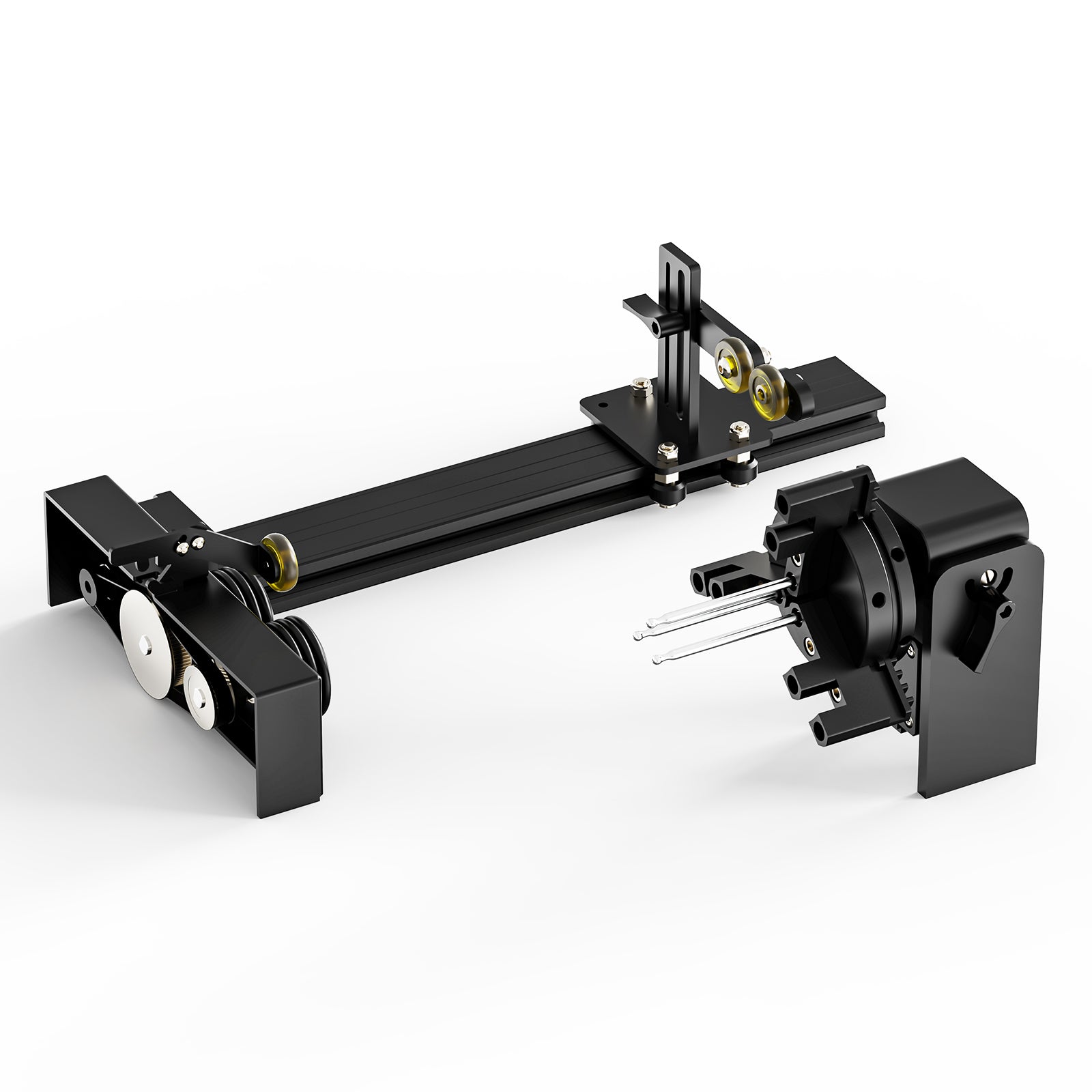

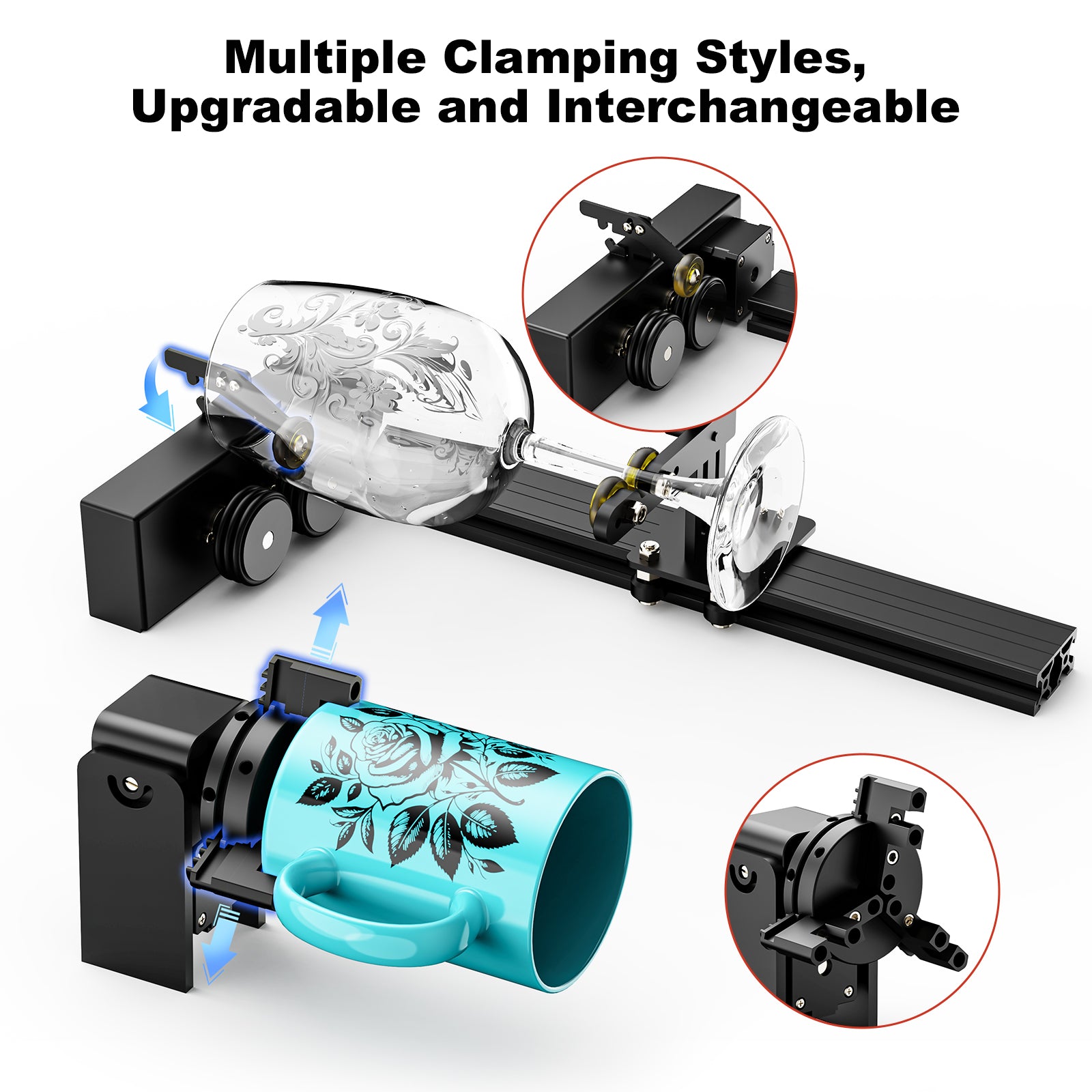

Multiple Clamping Styles, Upgradable and Interchangeable
Game-Changing、Ultimate Creativity

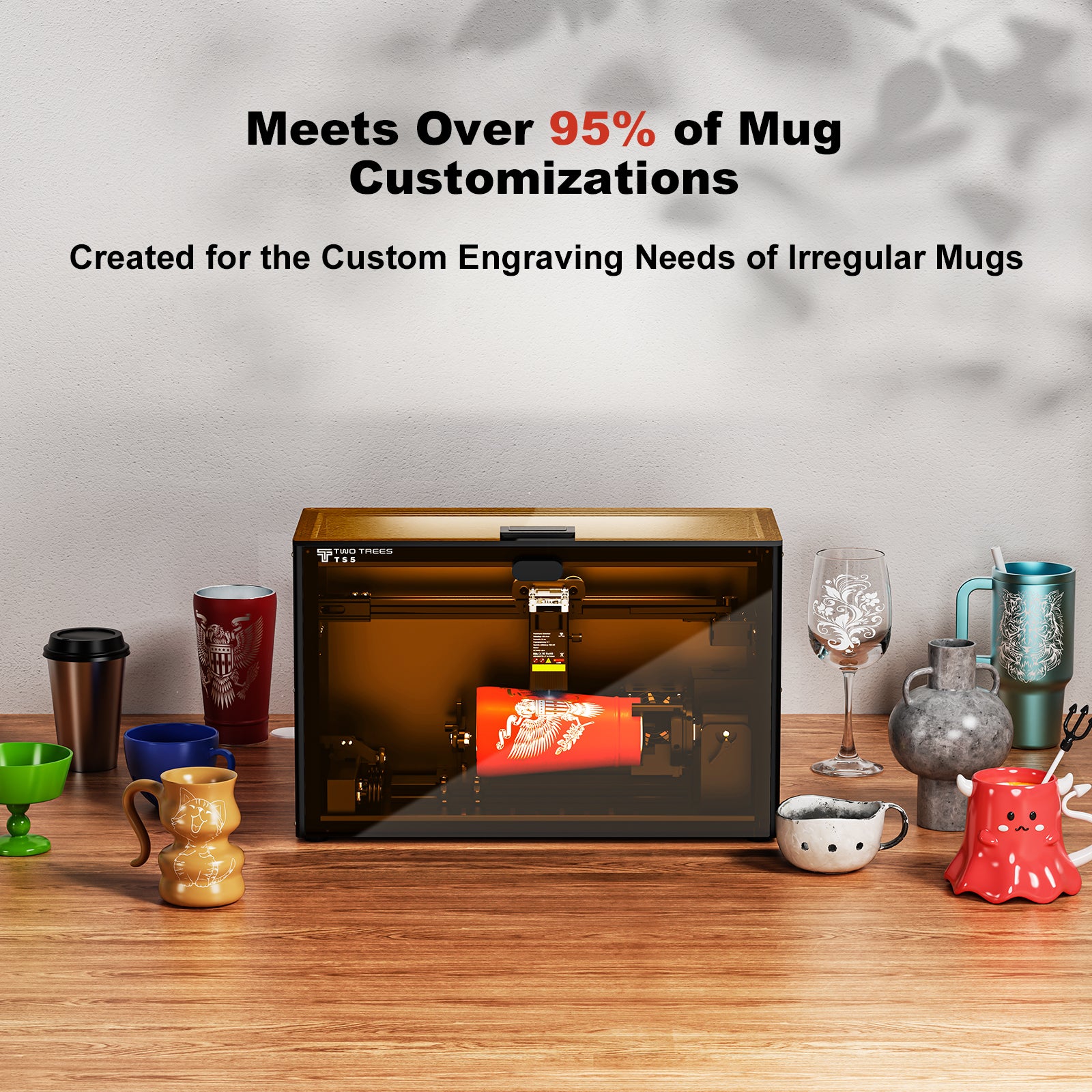

Soive 99% of the Mugs Engraving Problems on the Market
Discover What's New

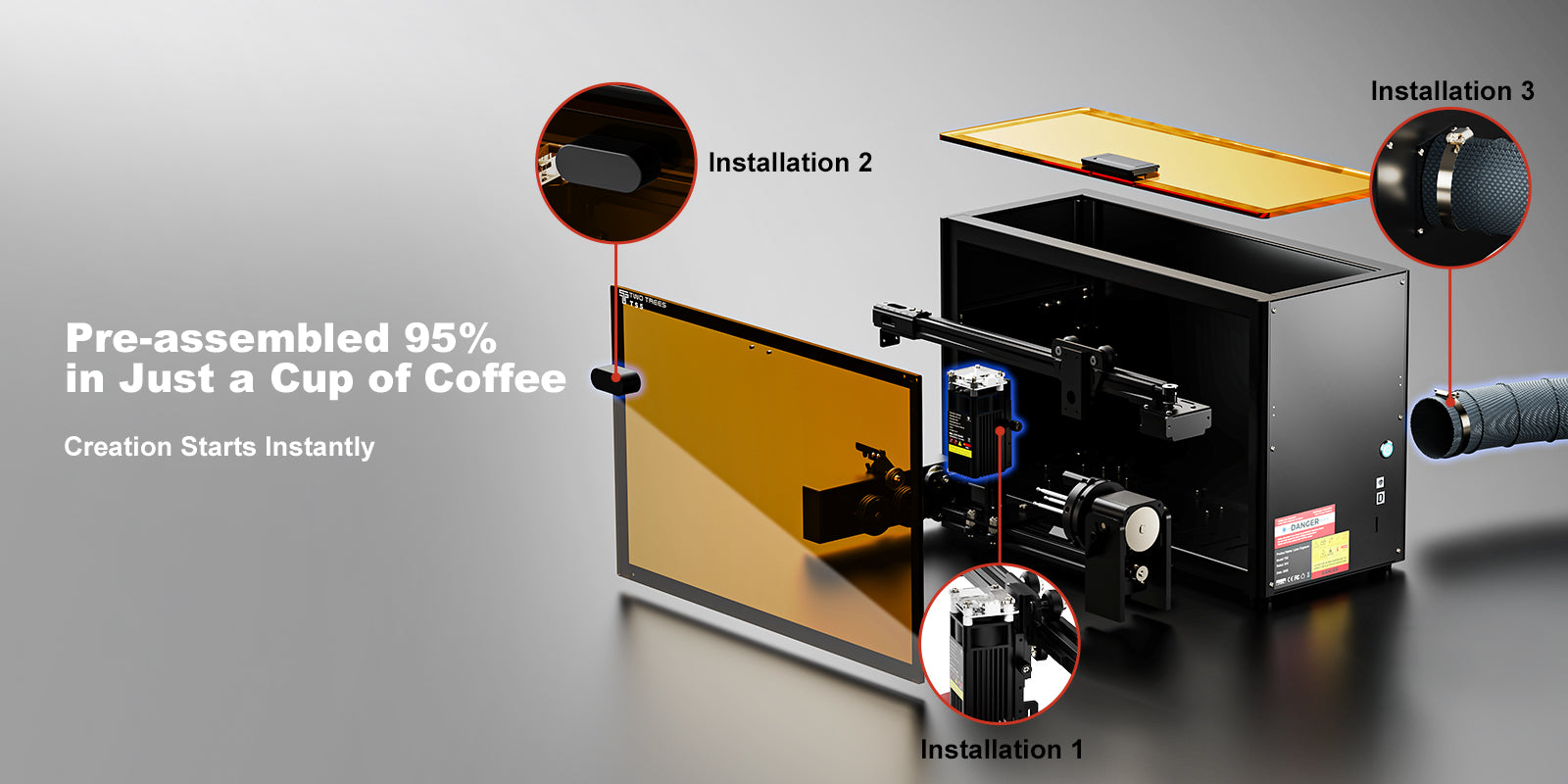

Pre-assembled 95%

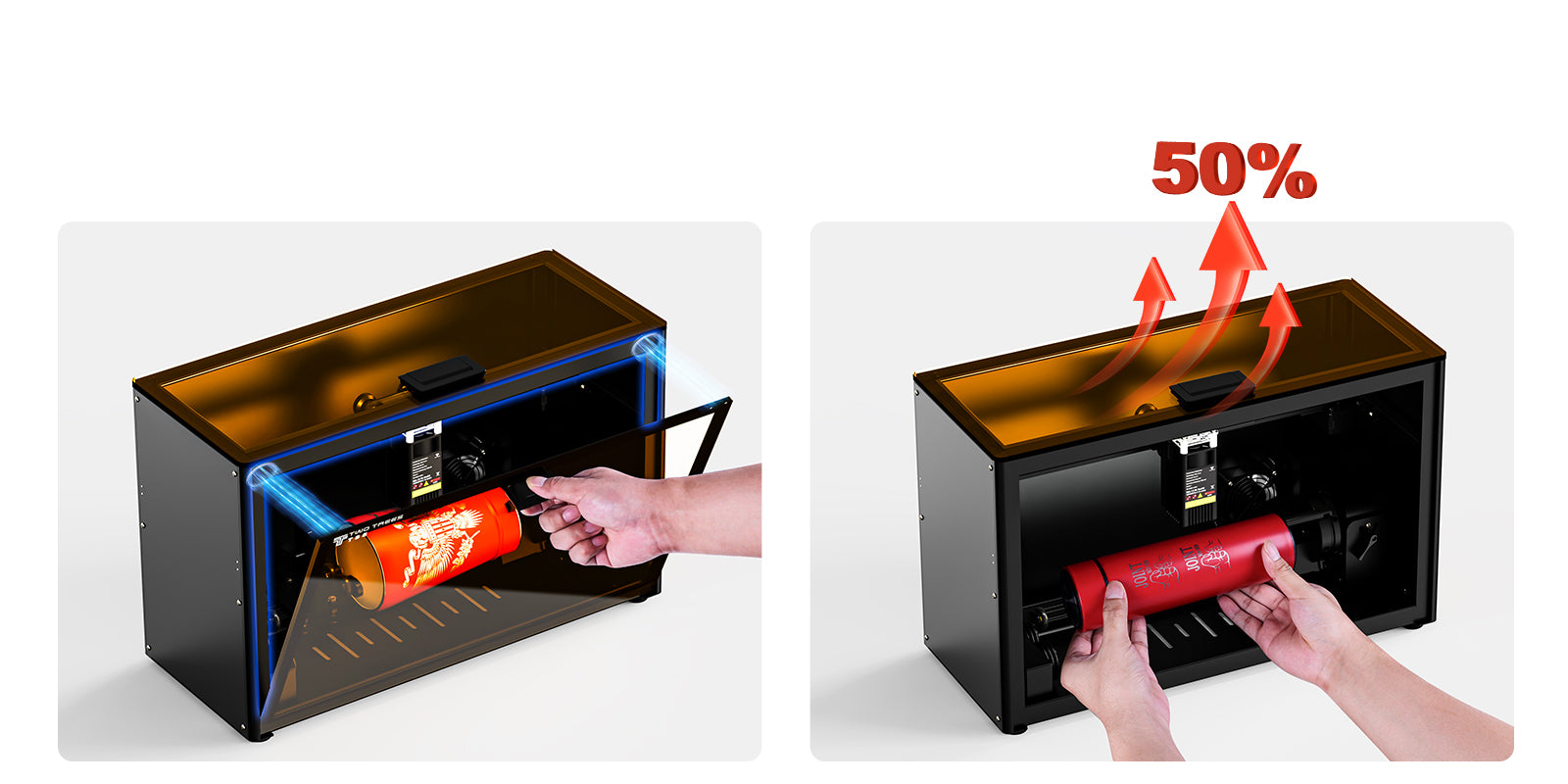

Magnetic Closure Design

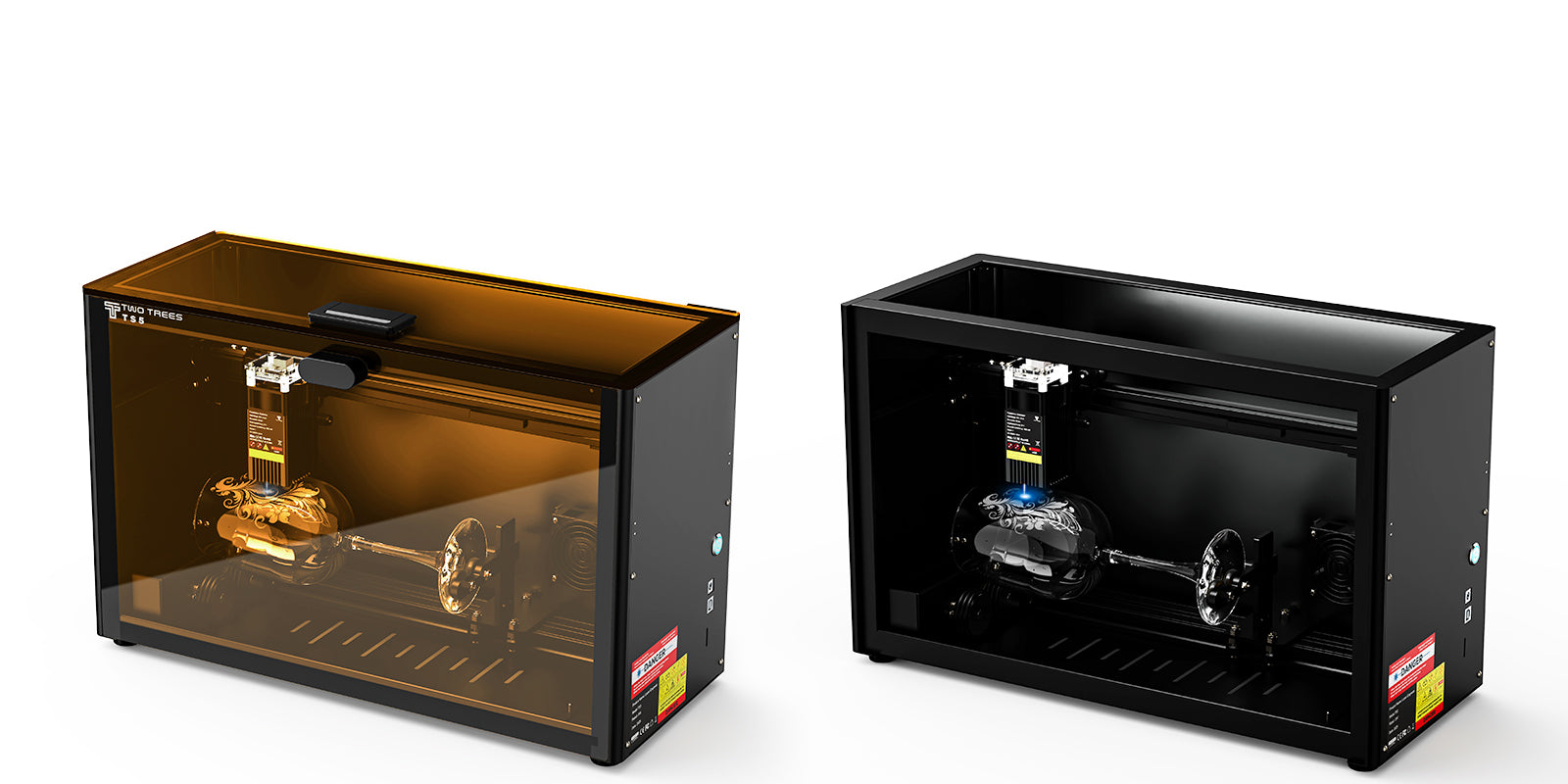

Safety and Eye Protection

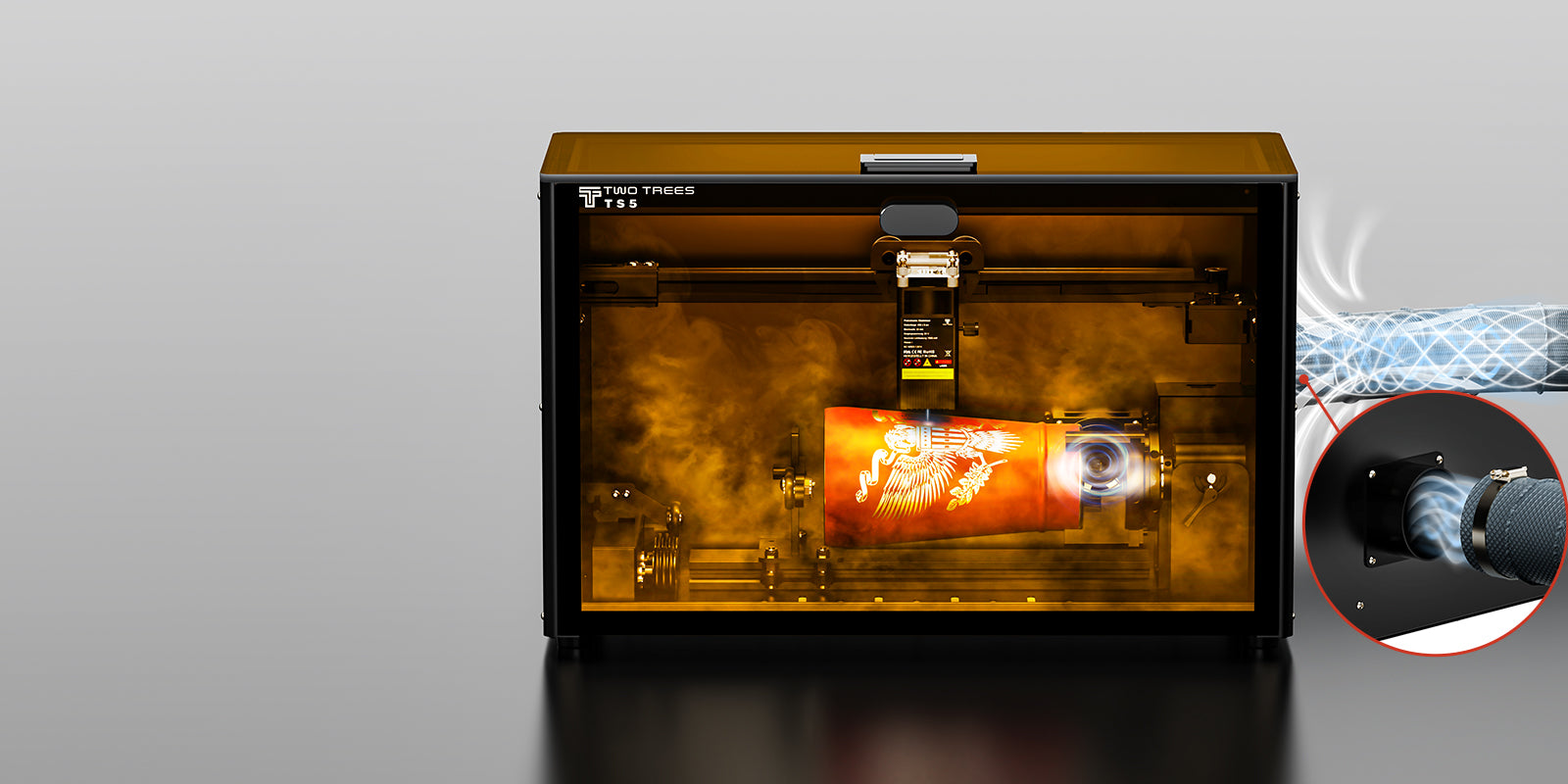

Dust and Smoke Exhaust
Compatible With Mainstream Software
Special Filtering Material to Effectively Block Harmful Blue Li

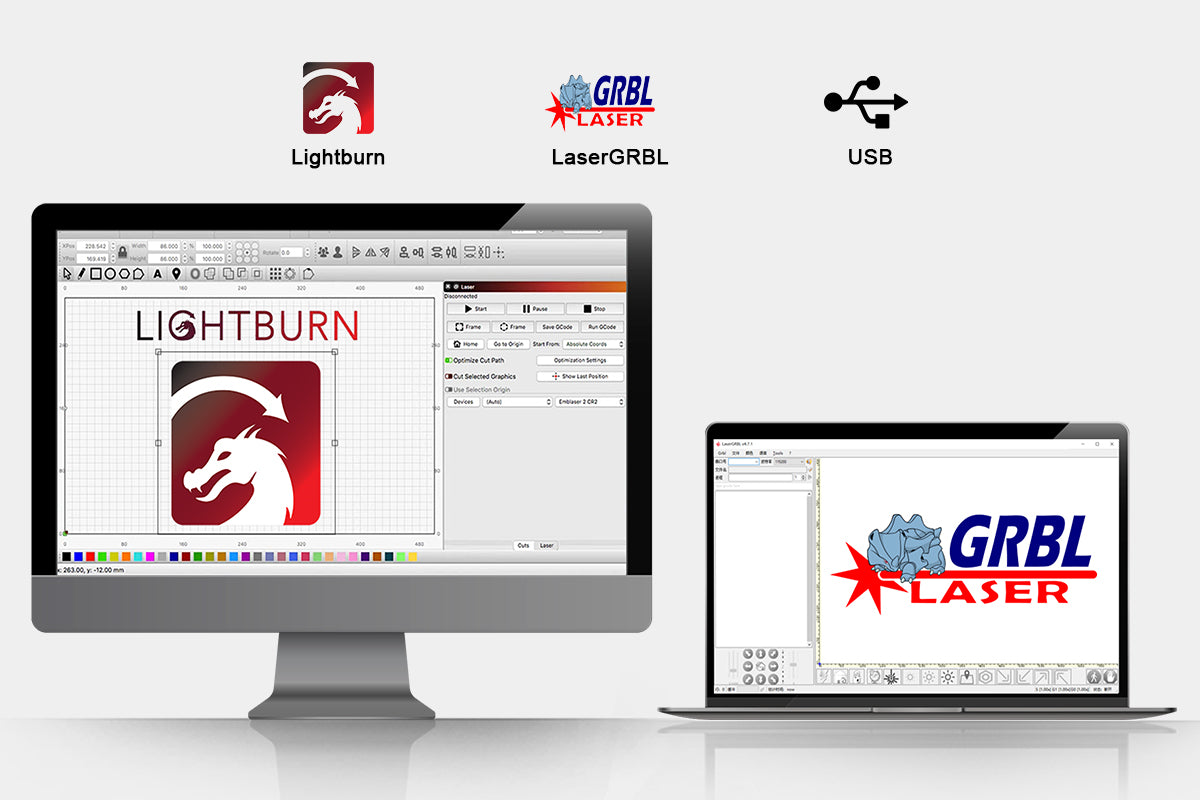

Unleash Software Flexibility
Satisfy all Your Creativity From Start to Advanced,Compatible with Lightburn and so on
TS5 TECHNICAL DATA
Built for precision. Specified in detail.
Every measurement, tolerance, and interface is engineered for repeatable accuracy — so creators can focus on making, not compensating.
Laser Power
7W
Spot Size
0.035 × 0.1 mm
Maximum Speed
10,000 mm/min
Working Area
249 × 123 × 123 mm
Chuck External Clamping Range
Ø26–Ø140 mm
Chuck Internal Clamping Range
Ø15–Ø110 mm
Main Material
Aluminum + High Carbon Steel

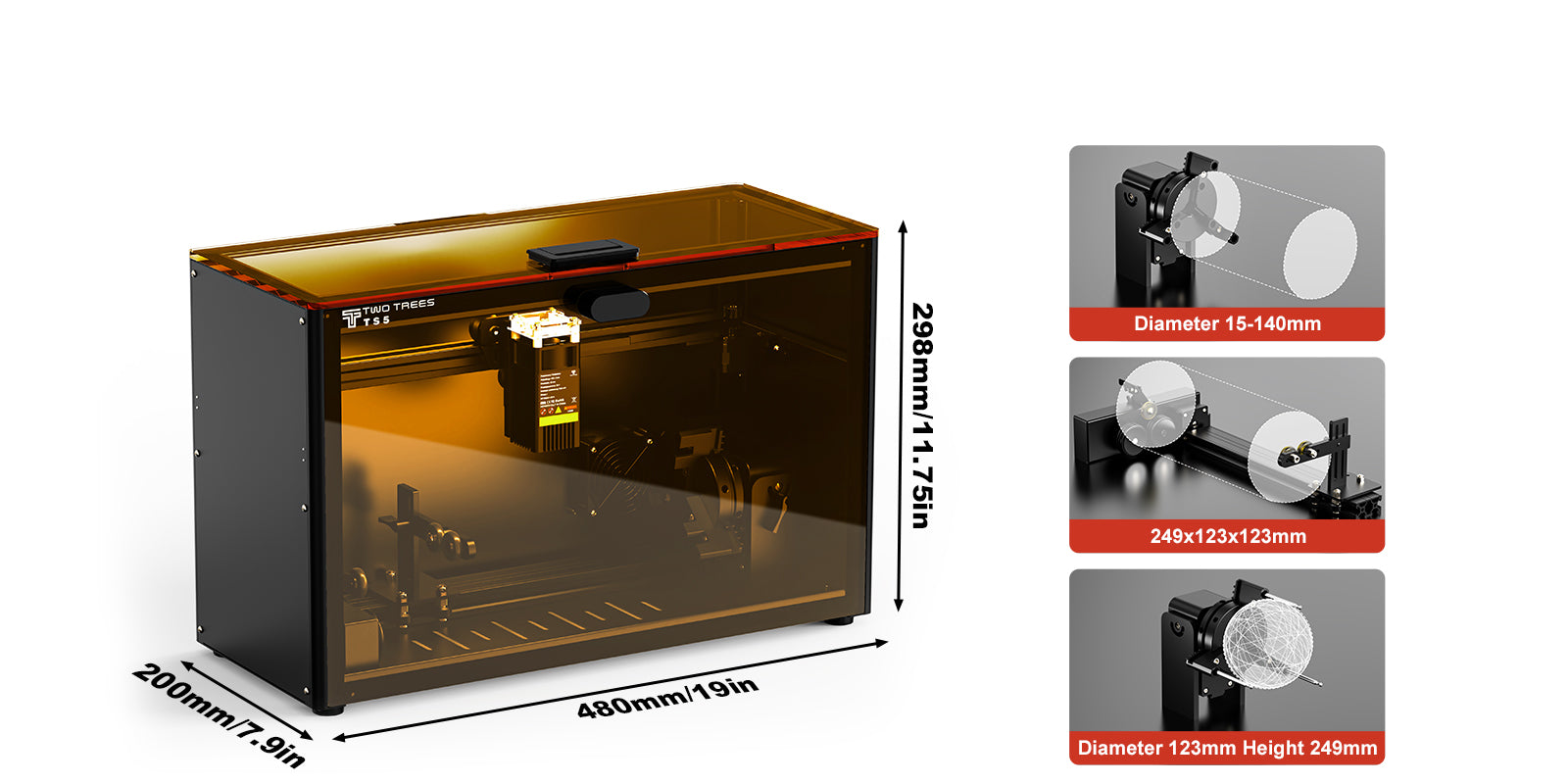

Product Dimensions
480 × 200 × 298 mm
Net Weight
9.13 kg
Gross Weight
10.55 kg
Working Area
249 × 123 × 123 mm
Motion Structure
XY Dual-Axis
X/Y Axis Positioning Accuracy
0.1 mm
External Clamping Range
Ø26–Ø140 mm
Internal Clamping Range
Ø15–Ø110 mm
Tilt Adjustment Angle
−8° to +8°
Laser Power
7 W
Wavelength
450 ± 5 nm
Spot Size
0.035 × 0.1 mm
Engraving Materials
Mugs, Wine Glasses, Stainless Steel, Rings
Maximum Speed
10,000 mm/min
Overall Power
60 W
Input Voltage
100–240 V AC, 50/60 Hz
Output Voltage
24 V
Supported
TF Storage Card, USB Port, Wi-Fi, Return to Origin After Engraving, Motion Control, Laser Power Adjustment, External Exhaust Interface
Not Supported
Bluetooth, Limit Homing, Power-Off Resume
Optional
Gas Assist, Screen Control
Engraving Software
LaserGRBL (Windows), LightBurn (Common)
Supported Operating Systems
macOS, Windows, Linux
Software Languages
Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, and more
Supported Software Formats
LBRN, BMP, JPG, PNG, GCODE
Engraving File Format
.NC
Safety Certifications
CE, FCC, ROHS, CE-EMC, CE-LVD, CE-RED, CE-MD, EN60825-1, EN60825-4, IEC60825, FCC-Sdoc, FCC-ID, FDA
Operating Temperature
5–40°C
Operating Humidity
20–60% RH
Package Dimensions
553 × 280 × 387 mm
